OIL PAN T04E66 1990-03 Mercedes Benz Truck 466646-0024
Availability:
275 in stock, ready to be shipped
Original price
$ 400.00
-
Original price
$ 400.00
Original price
$ 400.00
$ 400.00
-
$ 400.00
Current price
$ 400.00
| Part Number | 466646-0024 |
| Previous version | 466646-5024S, 466646-0013, 466646-0017, 466646-0018, 466646-0019, 466646-0020, 466646-0023, 466646-24 |
| OE Number | 3660965499, 3660964899, 3660964299, 3660964199, 3660964099, 3660963499, 3650962999, 3660965499KZ, 3660964899KZ, 3660964299KZ, 3660964199KZ, 3660964099KZ, 36609634992KZ, 3650963499KZ |
| Description | Mercedes Benz-Commercial Piston Bully, Mercedes Benz-Commercial 1720/1820 Industrial, Truck, CV on the road |
| CHRA | 408105-0353 (408105-5353S) |
| Turbo Model | T04E66-4, T04E66 |
| Engine code | OM366LA, 356999, 356984, 356987, 357925, 357931 |
| Model | Z9999 |
| Model | T04E66 |
| Offset | 6.0L, 6000cc, 6 cylinders, 12 valves |
| KW | 170/210 hp |
| Gasoline | Diesel |
| Bearing housing | 430027-0025 (430027-0022) (186879, 186881) (1100030450) (oil cooled) |
| Turbine wheel | 446905-0001 (451309-0002) (Ind. 57.65 mm, Exd. 73. mm, Trm 63, 11 blades) (1100040437, 1100040435) |
| Comp. Wheel | 442293-0003 (Ind. 58. mm, Exd. 75. mm, Trm 38, 6 + 6 knives) |

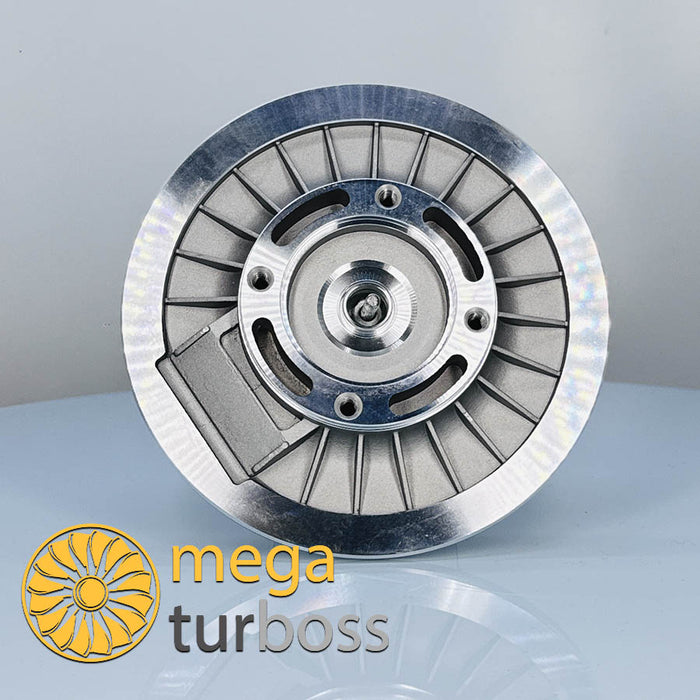

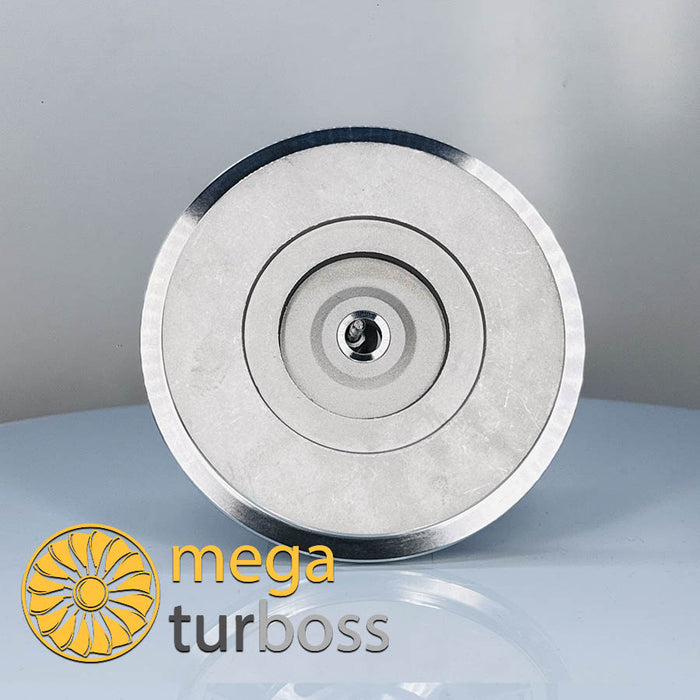

| Back plate | 408045-0031 (408045-0019) (ME078204) |
| Heat shield number | 409299-0001 (409299-0000) (311607) |
| Repair Kit | 468265-0000 (1100040760) |
| AR turbine housing | 1.0 |
| Gasket (turbine inlet) | 409039-0000 (409039-0001, 210019, 2405022) (stainless steel) (1900000006) |
| Gasket (turbine outlet) | 409196-0001 (210226) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500) (190000000037) |
| Gasket (oil outlet) | 210021 (210021-0000, 409037-0000, 413671-0000, 3519807, 311496) (1900000027) (Paper) |
| Performance | Without actuator, free floating |
| Replaced by | 466646-0013 |
| Manufacturer | Honeywell-Garrett |
Applications
1990-03 Mercedes-Benz-Commercial Piston Bully OM366LA
1990-03 Mercedes Benz-Commercial 1720/1820 Industrial, Highway CV Truck OM366LA
