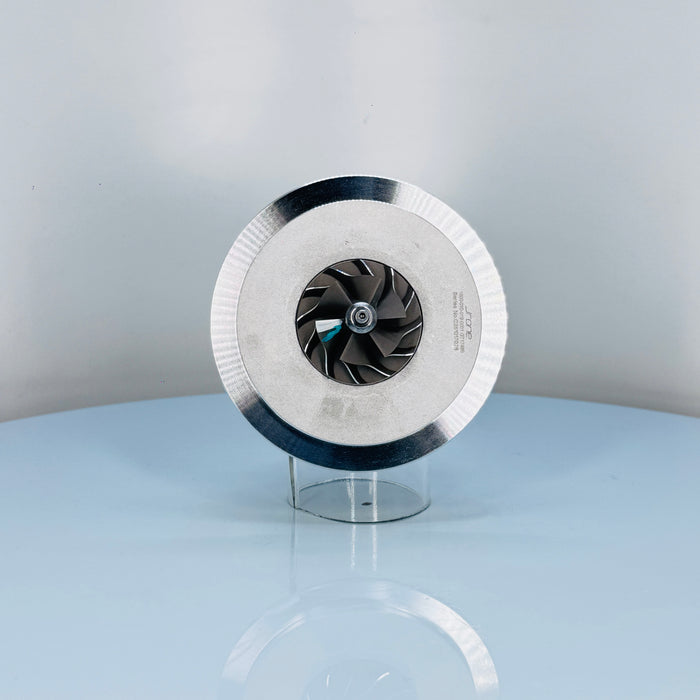

CARTRIDGE GT1749S 2003 Hyundai Truck 715924-0004

Availability:
60 in stock, ready to be shipped
Original price $ 5,000.00 - Original price $ 5,000.00
Original price
$ 5,000.00
$ 5,000.00 - $ 5,000.00
Current price $ 5,000.00
Part Number 715924-5004S
Previous version 715924-0004, 715924-0001, 715924-0003, 715924-0002, 715924-4
OE Number 2820042700, 28200-42700
Year 2003-
Description Hyundai Porter H-100 light truck, Kia Bongo
CHRA 433352-0031 (433352-5031S) (1102017905)
Turbo Model GT1749S
Engine 4D56TCI, Euro III 4D56TCiá, D4BH, 4D56TCi Euro3
Engine Manufacturer Hyundai
Offset 2.5L, 2476 cc, 4 cylinders
KW 73/100/206
Max RPM 4000
Fuel Diesel
Angle a (compressor casing) 110º
Angle ß (turbine casing) 270º
Bearing housing 434578-0012 (434578-0014, 435889-0003) (Water-cooled)
Turbine wheel 434714-0021 (434714-0007) (Ind. 43.94mm, Exd. 37.21mm, Trm 5.79, 12 blades) (1102017432, 1100016101)
Comp. Wheel 436132-0003 (436132-0014, 436334-0003, 701300-0007, 703925-0003, 703925-0011, 706164-0003) (Ind. 34.67 mm, Exd. 49. mm, Trm 4.47, 6 + 6 blades, Superback)
Back plate 433294-0002 (433254-0003) (1102015315)
Heat shield number N/A
Repair Kit 732252-0001
Turbine housing 452540-0007
Compressor cover 435791-0143
AR turbine housing 0.40
Settings Tailgate (pressure) 0.670-0.710 / 0.870-0.910 bar
Settings Waste Gate (Lift Rod) 1.00 / 4.00 millimeter
Solenoid 432340-0119
Gasket (turbine inlet) 210501
Gasket (turbine outlet) 210525
Gasket oil inlet 210023
Manufacturer Honeywell-Garrett

Applications

2003- Hyundai Truck Porter with 4D56TCI Engine
