VARIABLE GEOMETRY GTC1244VZ (S3E) Turbo 775517-0001
|
Part Number |
775517-5001S |
|
Previous version |
775517-0001, 775517-1, 775517-0001, 775517-0002 |
|
Original equipment number |
03L253016T, 03L253016TX, 03L253016TV |
|
Year |
2009-13 |
|
Description |
GOLF TOURAN CADDY, JETTA, PASSAT, Audi A3, Altea TDI 105, Leon TDI 105 |
|
CHRA |
(1102012902, 1000010430) |
|
turbo model |
GTC1244VZ (S3E) |
|
Engine |
CAYA, CAYB, CAYC Euro-5 |
|
Engine manufacturer |
ww |
|
Offset |
1.6L, 1598 ccm, 4 Cylinders |
|
Energy |
77/105 hp |
|
RPM max. |
4000 |
|
Gasoline |
Diesel |
|
Bearing box |
(Oil Cooled)(1102012451, 1900011361) $118.97 NEW IN STOCK |
|
turbine wheel |
(Ind. 32.48mm, Ext. 35.5mm, Trm 7.39, 9 blades)(1102312416,1100016348) |
|
compensation Wheel |
786554-0003 (Ind. 31.19 mm, Ext.44, mm, Trm 4.05, 8+8 blades, Superback)(1102012402, 1200016488) |
|
Back plate |
N/A |
|
Heat Shield Number |
(1102012340, 2030016137) |
|
Repair Kit |
(1102014750, 5000010194) |
|

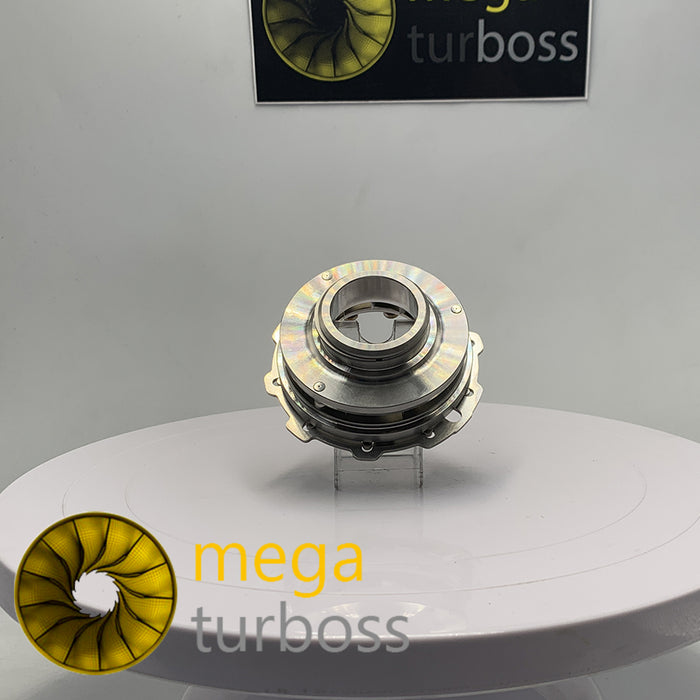

Nozzle Ring Assembly |
(1102012830, 3000016068) |
|
Nozzle ring basket |
(3400016796) |
|
Solenoid |
(1102215382) |
|
AR Turbine Housing |
VNT35 |
|
Exhaust manifold gasket |
210985 |
|
Gasket (turbine outlet) |
210878 (stainless steel) |
|
Gasket (oil inlet and outlet) |
211122 |
|
EGR actuator gasket |
211123 |
|
Gasket kit |
215471 (1900100574, 2090010064M) $49.47 |
|
intercooler |
8ML376746-721 |
|
NOTE |
Integrated manifold, pneumatic actuator |
|
Manufacturer |
Honeywell-Garrett |
Applications
2009- Audi A3 1.6 TDI (8P/PA) CAYC Euro-5 Engine
2009-13 Skoda Octavia II 1.6 TDI CAYC Euro-5 Engine
2009- Volkswagen Golf VI 1.6 TDI CAYC Euro-5 Engine
2009- Volkswagen Jetta V 1.6 TDI CAYC Euro-5 Engine
2009- Volkswagen Passat B6 1.6 TDI Engine CAYC Euro-5
2009- Volkswagen Polo V 1.6 TDI CAYC Euro-5 Engine
2009-13 Seat Altea TDI 105, León TDI 105 CAYC Euro-5 engine
2009-13 Skoda Octavia TDI 105, excellent TDI 105 CAYC Euro-5 engine
