TURBINE GT1544H 1998-Alfa Romeo Lancia Fiat 701796-0001
|
Part Number |
701796-5001S |
|
Previous version |
701370-0001, 701370-5001S, 701796-0001 |
|
Original equipment number |
46480117, 71723528, 71723521, 46750783, 71723540, 60816070 |
|
Year |
1998- |
|
Description |
Alfa-Romeo 145, 146, 156, Fiat Brava, Marea, Multipla, Lancia Lybra |
|
CHRA |
433289-0061 (433289-5061S, 1102015907, 1000010049) |
|
turbo model |
GT1544H |
|
Engine |
M.720.KT.19.T, AR32302 / M720KT19T, 182B4.000 |
|
Offset |
1.9L, 4 CYL., 1910 ccm |
|
kilowatts |
77/105 |
|
Gasoline |
Diesel |
|
Angle α (compressor casing) |
334º |
|
Angle β (turbine casing) |
119.5º |
|
Bearing frame (oil cooling) |
433275-0002 (Oil Cooled)(1900011012) |
|

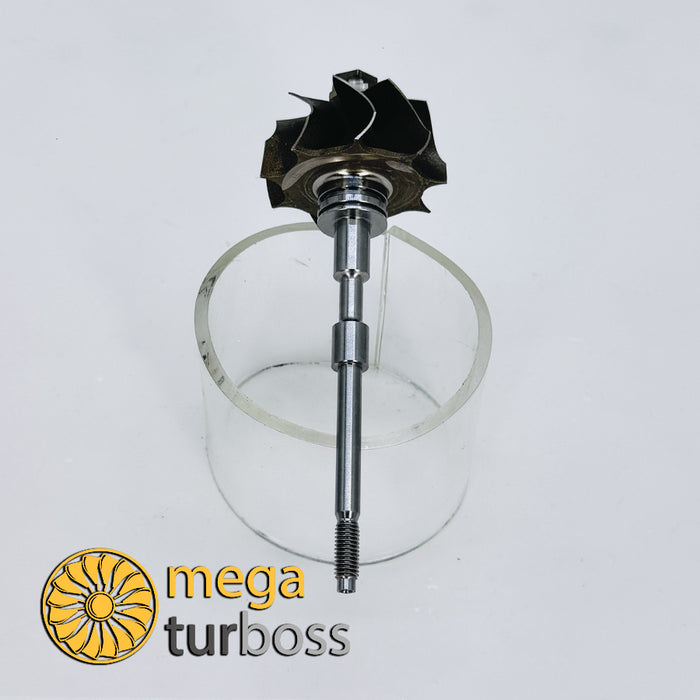

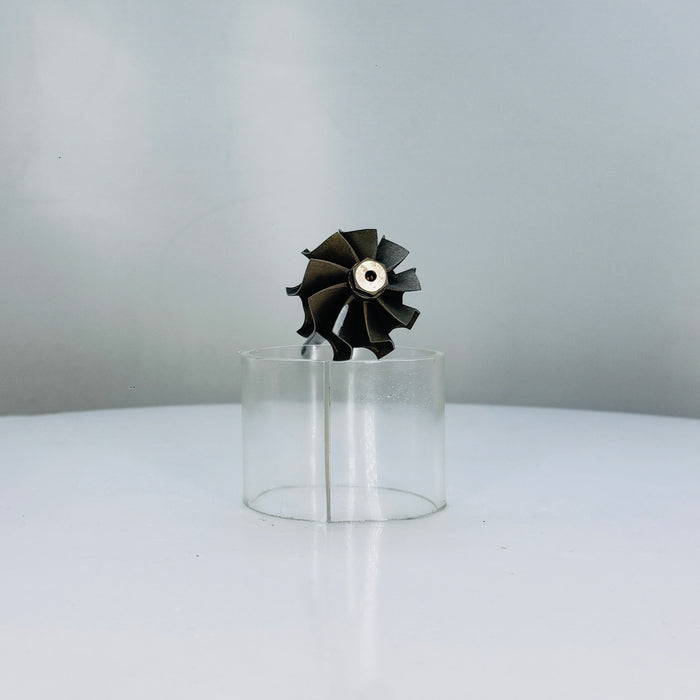

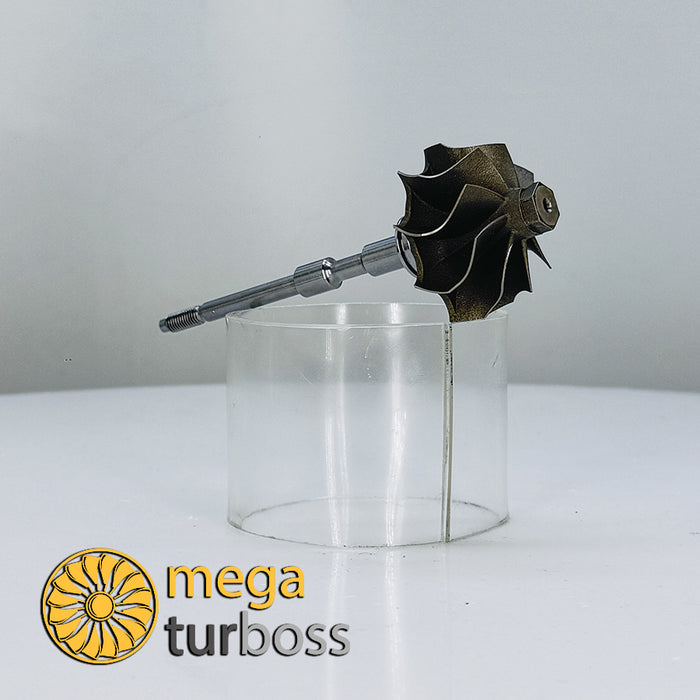

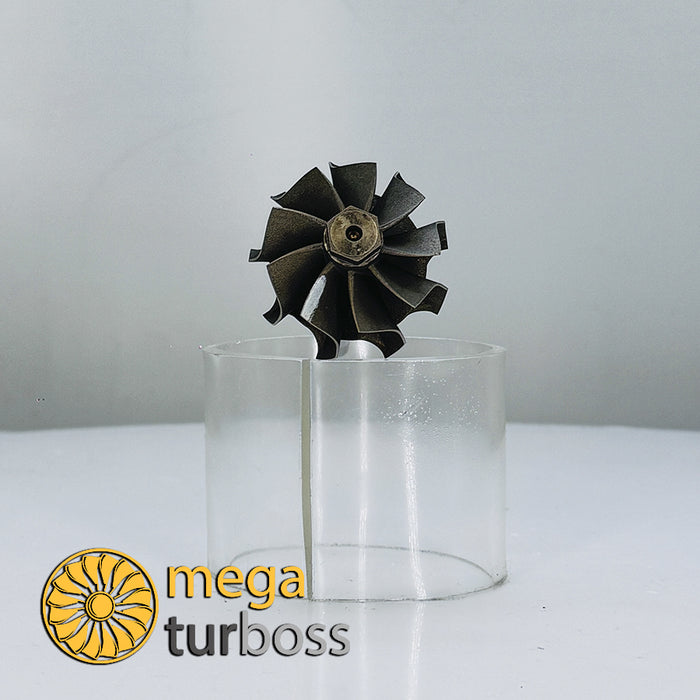

turbine wheel |
433165-0001 (433165-0007, 433298-0001, 433298-0030, 434713-0001, 434713-0005, 434713-0015, 434713-0020, 434715-0005)(Ind.19mm, 41.19 mm9 Exd.) mm Blades )(1100030098) |
|
compensation Wheel |
433287-0011 (433287-0009)(Ind. 32.86mm, Exd.43.99mm 6+6 blade billet)(1200011003) |
|
Back plate |
700593-0001 (1300011023) |
|
Heat Shield Number |
434302-0001 (2030016026) |
|
Repair Kit |
732252-0001 (5000010067) |
|
Turbine casing |
701748-0002 |
|
Compressor cover |
435791-0043 |
|
AR Turbine Housing |
035 |
|
Solenoid |
433452-0006 (2061016055) |
|
Settings Waste valve (pressure) |
1,150 to 1,210 bar |
|
Settings Waste gate (elevator shaft) |
1.00mm |
|
turbo gasket set |
2505004 |
|
Manufacturer |
Honeywell-Garrett |
Applications
1999- Alfa-Romeo 145, 146, 1.9L JTD Engine AR32302
1997-00 Alfa-Romeo 156 1.9L JTD Engine AR32302 / M720KT19T
1998-Fiat Brava 1.9L JTD 105 Engine 182B4.000
1999-Fiat Marea, Multipla Engine 1.9L JTD 182B4.000
1999-Lancia Lybra 1.9L JTD Engine AR32302
