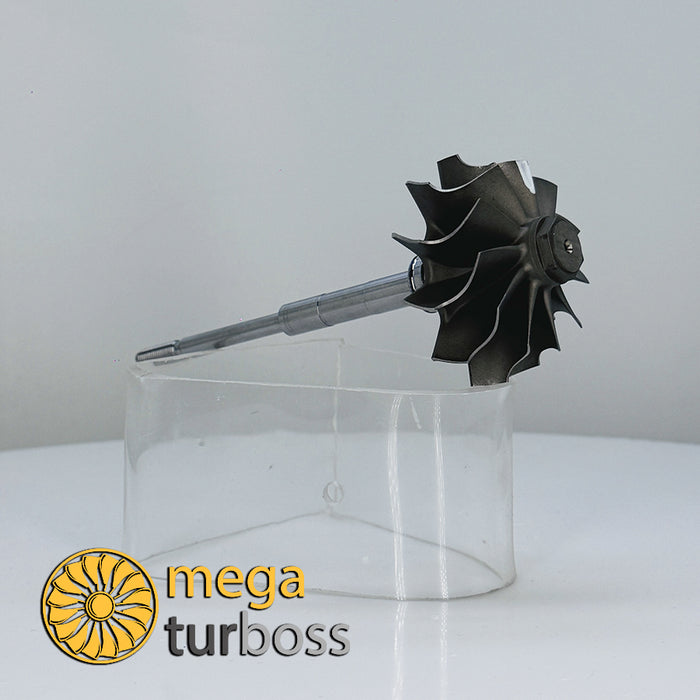

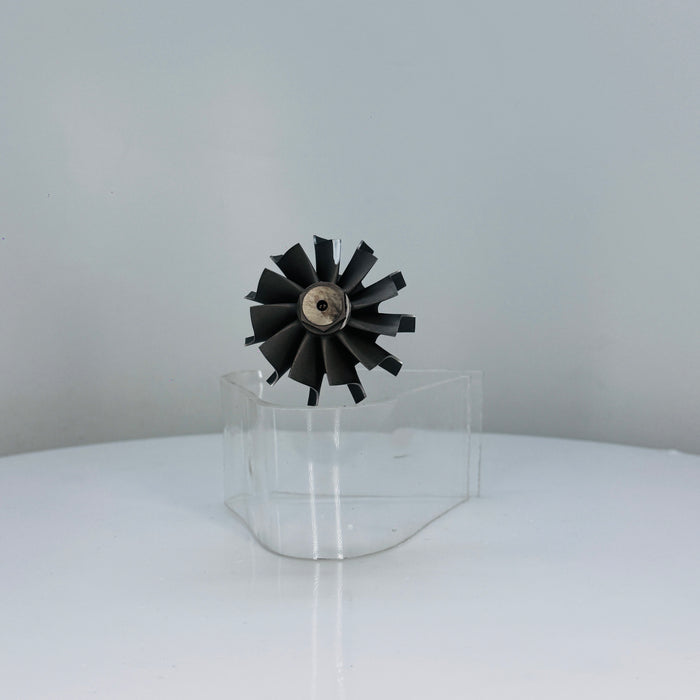

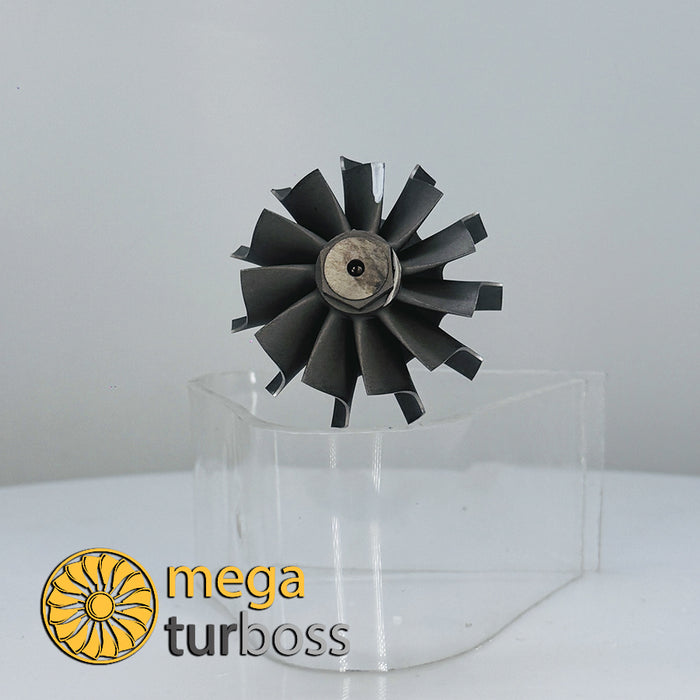

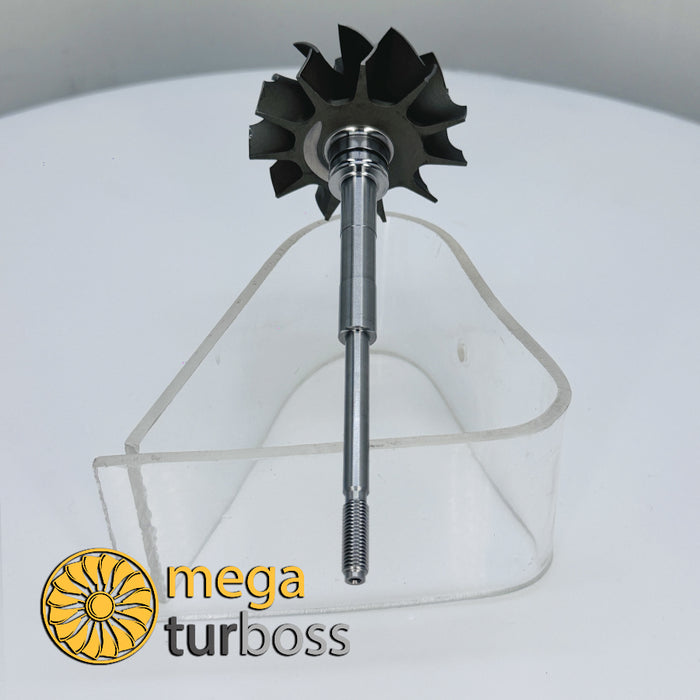

K27.2 TURBINE 1985-07 Mercedes Benz Truck 53279886441

Part Number

53279886441

Previous version

5327-988-6441, 53279886446, 310769, 313050, 53279886440, 465366-0009

Original equipment number

3760960699, A3760960699, 3520964299, 3520965199, 3520965299, 3520965399, 3520966899, 3660960299, 3660960999, 3660960699, 3660961099, A3520964299, A3520965199, A3520965299, A3520965399, A3520966899, A3660960299, A3660960999, A3660960699, A3660961099, 3660961499, A3660961499, 3660960899, A3660960899 , 3660962299, 3660961599, 3660961499, 3660962699, A3660962299, A3660961599, A3660961499, A3660962699, 3660962899, A3660962899, 3520964299, 3520965199, 3520965299, 3520965399, A3520964299, A3520965199 - A3520965299, A3520965399, 3660966599

Year

1985-07

Description

1320 Truck, NG Truck, LN2, 1117, 1520, Unimog 1700, Industrial

Manufacturer Part Number

53279706441, 53279706440, 53279736441, 53279716441, 53279746441, 53279726441, 53279706441, 53279776441, 53279756441, 5327-970-6441, 5327-970-6440, 53279706446

CHRA

53277100046 (5331-710-0046, 53277100058)(200270008)

turbo model

K27.2-2964MXA17.22GNATB

Engine

OM366A, OM366LA

Offset

5.96L, 5960 ccm, 6 Cylinders

kilowatts

150/204/127

RPM max.

2600

Gasoline

Diesel

Angle α (compressor casing)

105.5/127/207/215/262/277/288/310°

Angle β (turbine casing)

138/220°

Bearing box

53271500011

turbine wheel

53271202111 (53271205006, 53271205009, 53271205084, 53271205025)(Ind. 69.95 mm, Ext.62.63mm, 12 blades)(201110005)

compensation Wheel

53271232030 (53271232037, 53271232226, 53271232309)(Ind 47.29mm, Ext 73.66mm, 7+7 blades, Superback)(202090004)

Back plate

53271516700 (53271515722, 53271515735)(204060003)

Heat Shield Number

53271652004 (206270001)

Repair Kit

53287110009 (53247110025, 5326-711-0001, 53267110015, 53267110024, 53267110025, 53267110027, 53267110028, 53267110029, 53267110038, 53277110001, 53277110004, 53277110008, 53277110010, 53277110018, 53277110020, 53277110021, 53277110030, 53277110040, 53277110061) (1301027758, 209270001)

Turbine casing

53271016532 (53271016536)

Compressor cover

53271015110 (53271015301, 53271015218)

AR Turbine Housing

19

Gasket (turbine inlet)

409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006)(Stainless steel)

Gasket (turbine outlet)

409049-0000 (Stainless Steel)

Gasket (oil outlet)

210023 (147837, 210021, 215234, 52231586500)

Gasket (oil outlet)

210060 (311585, 2475013, 148062) (Paper)

NOTE

Replacement for K27-6440, 465366-0007

Manufacturer

Borg Warner - 3K - Schwitzer
