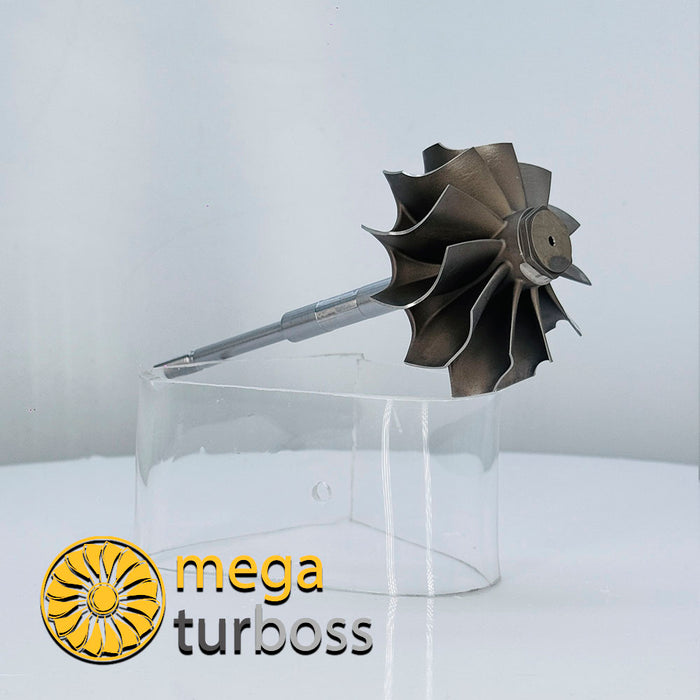

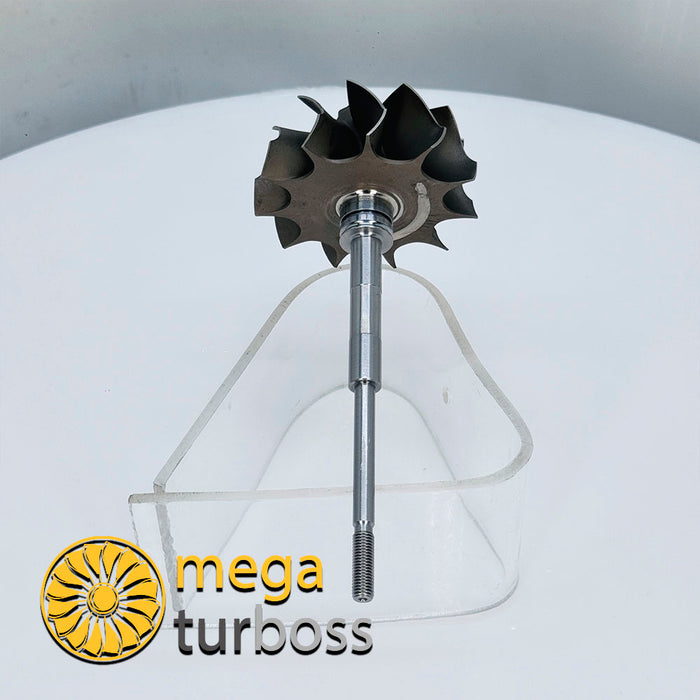

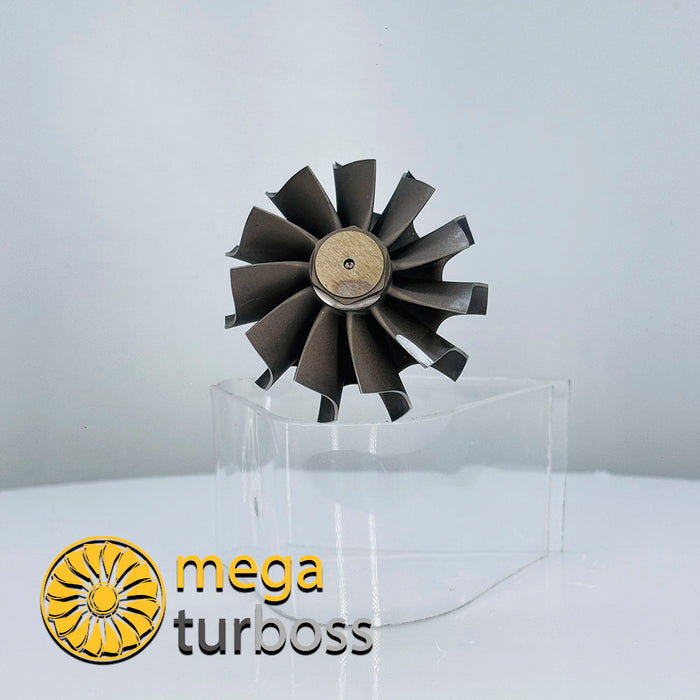

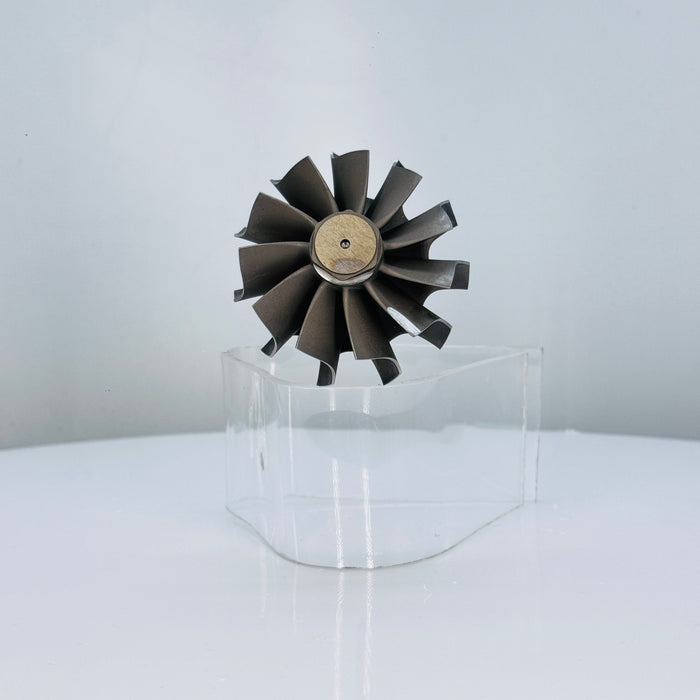

TURBINE T04B91 Caterpillar Earth Moving 409410-0001

Availability:
30 in stock, ready to be shipped
Original price $ 1,500.00 - Original price $ 1,500.00
Original price
$ 1,500.00
$ 1,500.00 - $ 1,500.00
Current price $ 1,500.00
Part Number 409410-5001S
Previous version 409410-0001, 409410-1
OE Number 4N6858, 4N-6858
Description Earth in motion
CHRA 408077-0102 (408077-5102S, 4N6860, 4N4780, 0R5888)
Turbo Model T04B91
Engine 3304
Gasoline Diesel
Offset 7000 cc, 4 cylinders
Machine Engine 3304
Genset Engine 3304
Generator SR4
Industrial Engine SR4, 3304, D330C
Excavator 225
Grader 120G, 130G, 12G, 130G, 140G
String Loader 941, 941B, 951B, 951C, 955K, 955L
Track-type tractor D4D
Wheel Skidder 518
Wheel Loader 920, 930, 950
Angle α (compressor casing) 168º
Angle β (turbine casing) 15th
Bearing housing 430027-0051 (430027-0035, 430027-0031) (2P ** 35)
Turbine wheel 451309-0003 (1555236) (446905-0007) (Ind. 74.5mm, Exd. 64.7mm, 11 sheets) (1100040436)< /td>
Comp. Wheel 409179-0018 (4N6861) (Ind. 48.35 mm, Exd. 70.mm, Trm 50, 8 + 8 sheets, S-Trim, Reverse) (1100040400)
Backplate 408045-0051 (311708C, 4N6863) (408206-0002, 408045-0006, 408045-0034, 310010, 311708, 104244-0000) (Dynamic) ( 1100040360)
Heat shield number 409299-0001 (7N**12)
Repair Kit 468100-0000 (3524796, 310063, 188401-0000) (6N7236, 2W0716) (1100040750)
Turbine housing 408667-0021
Compressor Cover 408173-0008 (4N6862)
AR Turbine Box 1.75
Gasket (turbine inlet) 407294-0001
Gasket oil inlet 210023 (55739, 147837, 3500681, 3519762, 3709737, 3755739, 409026-0001, 409036-0000, 409266-0001, 210023-0000)0
Gasket (oil outlet) 210021 (148062, 311496, 3519807, 409037-0000, 413671-0000) (1900000027)
Replaced by 409410-0002
Manufacturer Honeywell-Garrett

Applications

Caterpillar with 3304 engine
