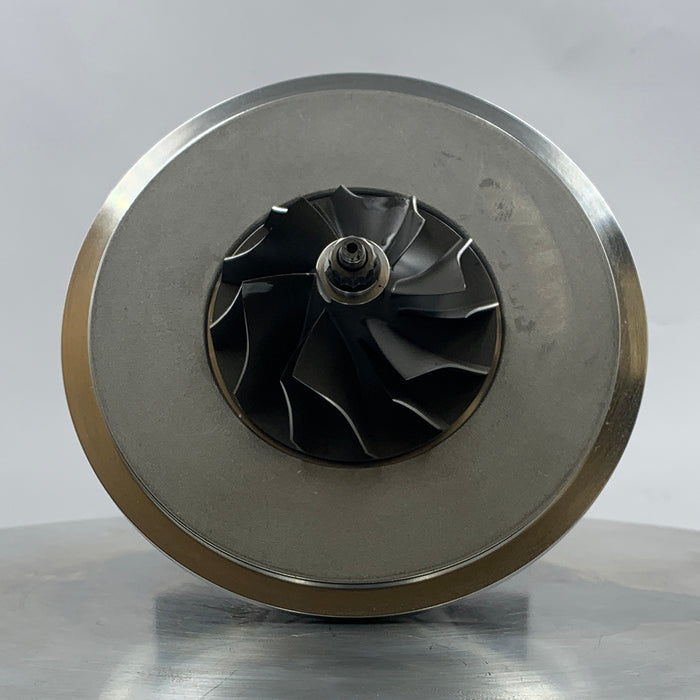

CARTRIDGE T04E17 1988-11 Navistar, various international 465225-0010
Availability:
Only 5 left!
Original price
$ 5,500.00
-
Original price
$ 5,500.00
Original price
$ 5,500.00
$ 5,500.00
-
$ 5,500.00
Current price
$ 5,500.00
| Part Number | 465225-5010S |
| Previous part number | 466772-0004, 466772-0005, 465225-0010, 465225-0009, 465225-10, 465225-9 |
| OE Number | 1817310C91, 991637C91 |
| Description | Various Navistar trucks, buses |
| CHRA | 408105-0278 (408105-5278S, 167337,1809696C91, 991532C91) |
| Turbo Model | S04E17 |
| Engine | DTA466, DTA466E |
| Engine Manufacturer | Navistar |
| Offset | 7.6L, 7600cc, 6 cylinders |
| KW | 187/230/254 |
| Gasoline | Diesel |
| Bearing housing | 430027-0051 (186880, 186882, 407285-0018, 430027-0031, 430027-0035) |
| Turbine wheel | 446905-0005 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0002,446905-0007, 446905-0010, 401330, 45-00130 0004) (Ind. 74. mm , Exd.64.61 mm, 11 sheets) |
| Comp. Wheel | 442476-0014 (Ind. 56.54mm, Exd. 74.95mm, 6 + 6 blades) |
| Back plate | 408045-0039 (408045-0030, 408045-0031, 408045-0038, 408045-0040, 408045-0061) |
| Heat shield number | 409299-0000 (409299-0001) |
| Repair Kit | 468265-0000 (468265-0000UK, 3545831) (1100040760) |
| Compressor cover | 443705-0001 (1809695C1) |
| AR turbine housing | 1.15 |
| Gasket (turbine inlet) | 407294-0001 (310694) (stainless steel) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500) (190000000037) td> |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000) (1900000027) |
| Gasket kit | 318420 |
| Manufacturer | Honeywell-Garrett |
Applications
1988-11 Navistar truck, various international with DTA466 engine, DTA466E
