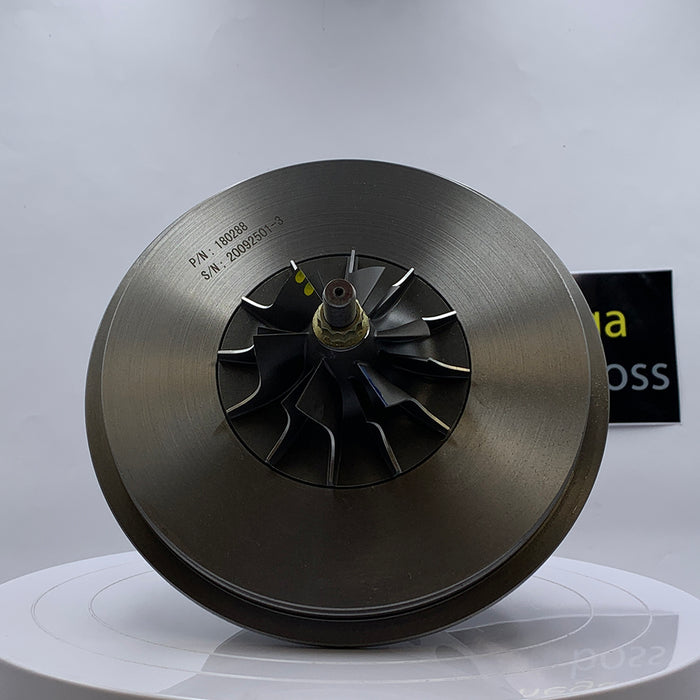

CARTRIDGE 4LE504 Caterpillar 146263
Availability:
Only 2 left!
Original price
$ 18,500.00
-
Original price
$ 18,500.00
Original price
$ 18,500.00
$ 18,500.00
-
$ 18,500.00
Current price
$ 18,500.00
| Part Number | 146263 |
| Previous version | 310258, 146263R, 147197, 147197R, 148498, 148498R, 148499, 148499R, 149168, 149168R, 149169, 149169R, 178048, 180287, 180287R, 180288, 180288, 180288 |
| OE Number | 0R5812, 4N9554, 4N9617, 4N9618, 5S9583, 7S1701, 7S1702, 8S4986, 8S4987, 8S9234, 8S9237, 8S9536 |
| Description | D6C-Tractor, 14E / 140-Grader, 235-Excavator, 814/815-Wheel Tractor, 815-Compactor, 816-Landfill Compactor, 966C-Wheel Loader, 977K-Traxcavator 3306-Vehicular< /td> |
| CHRA | 310125 (180296, 180296R, 178207R, 147709, 147709R, 178207, 148579, 148579R, 0R5895, 4N9536, 8S4579, 8S4580, 8S4983 td> |
| Turbo Model | 4LE-504, E-504 |
| Engine | 3306 |
| Gasoline | Diesel |
| Wheel Loader | 977K |
| Serial number | 11K1 to 11K698 and 11K700 to 11K702 inclusive |
| Bearing housing | 159505 (0R5406, 4N9540) (oil cooled) |
| Turbine wheel | 184409 (310838) (0R5391, 8S4989) (Ind. 72. mm, Exd. 91. mm, Trm 12.28, 12 blades) |
| Comp. Wheel | 182353 (6N7461, 7S7697) (Ind. 62.33 mm, Exd. 94. mm, Trm 6.12, 6 + 6 blades) |
| Back plate | 197651 (51135, 5S4556, 142066) (1250403300) |
| Heat shield number | 188086 (148046) (4N9556) |
| Repair Kit | 318381 (318350) (1152301755) |
| Gasket (turbine inlet) | 132040 (409377-0000, 210087-0000) |
| Gasket (oil outlet) | 129120 (3519763, 210018-0000, 201048, 157602, 3037537) |
| Gasket (oil inlet) | 129113 |
| NOTE | 180288 (4N9554) |
| Manufacturer | Borg Warner - 3K - Schwitzer |
Use 180288
Applications
Caterpillar Earth Moving 3306
